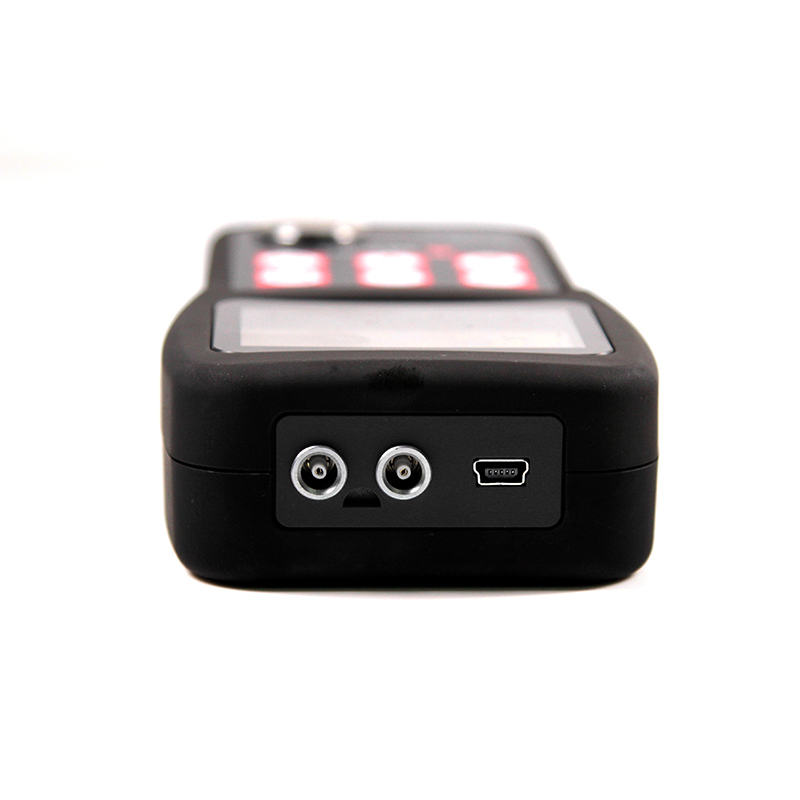

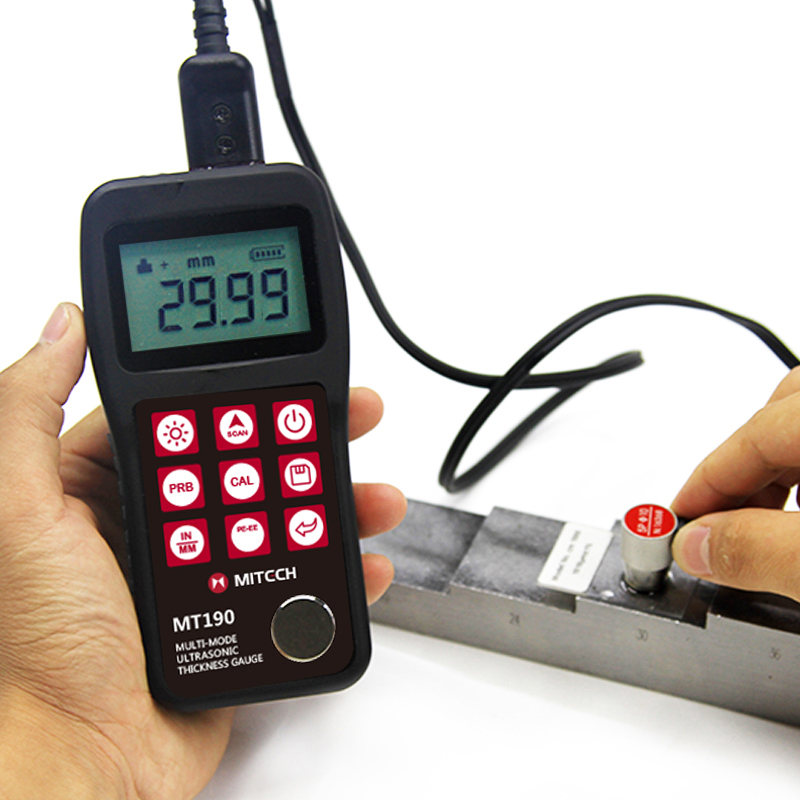

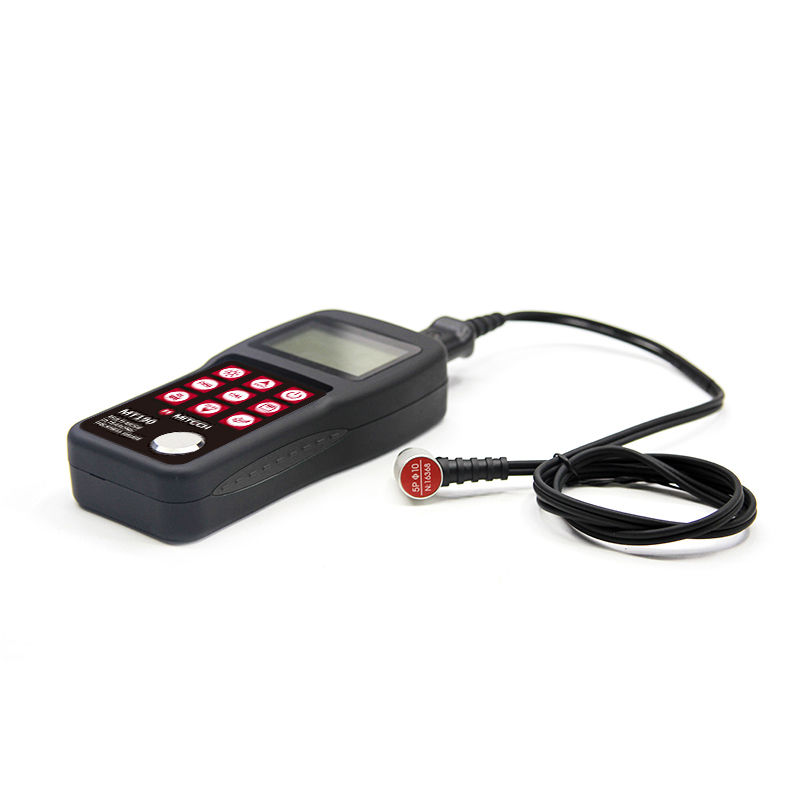

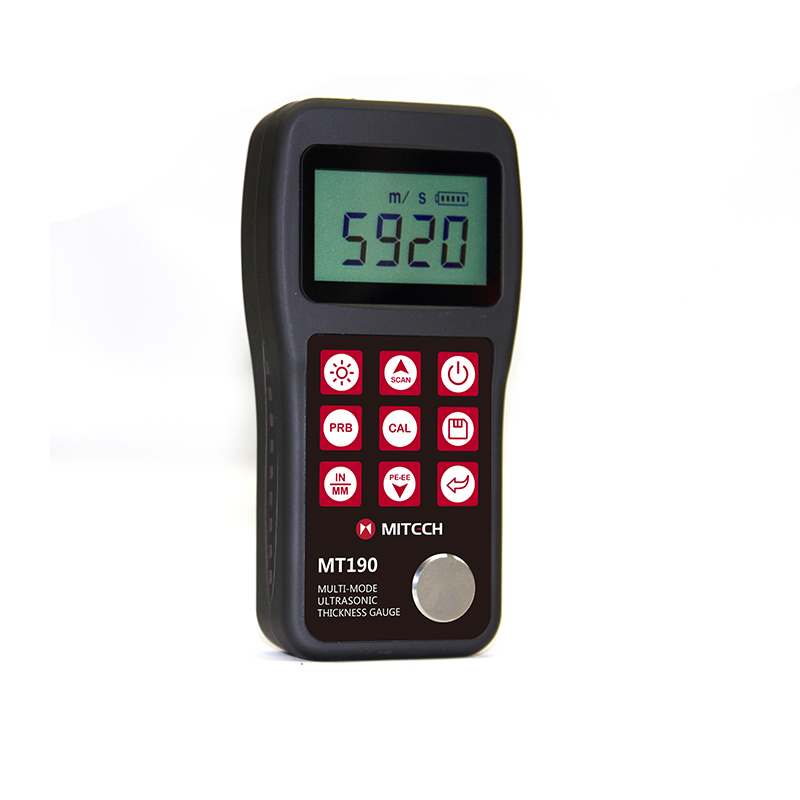

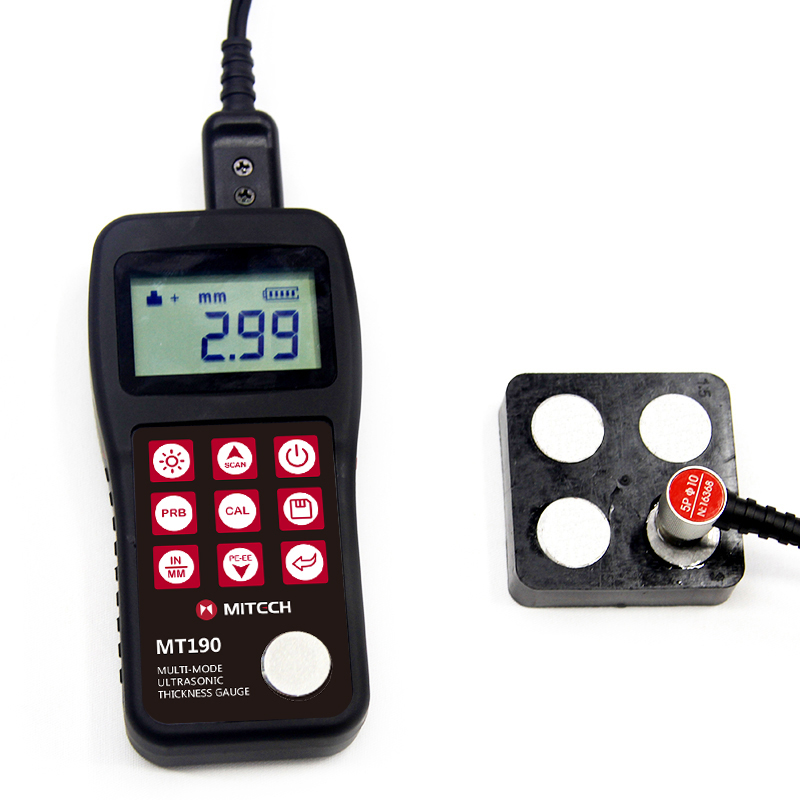

MT190 Multi-mode Ultrasonic Thickness Gauge

د.إ4,066.00 د.إ2,710.00

  • Measuring range:0.65-600mm(P-E),3-60mm(E-E)
  • Resolution Accuracy:0.1/0.01mm
  • Communication storage:USB
  • Working time:100h (EL backlight off).
  • Main unit weight:245g
  • Total weight:1.5KG
  • Dimensions:150×74×32 mm.
  • Related standards:CE
  • Guarantee: 1 Year

Download Catalog

Wishlist
Category: Ultrasonic Thickness Gauge
  • Description
  • Reviews (0)

Description

Overview:

Miteh MT190 multi-mode ultrasonic thickness gauge, based on ultrasonic measuring principle, it can perform thickness measurements on a wide range of materials including metals, plastic, ceramics glass and other ultrasonic well-conductive materials. It is also capable for measuring the sound velocity of the object with known thickness. Compared with the traditional measurement method, the advantage of ultrasonic thickness gauge is that it can finish the measurement only if it contacts with one side of the measured workpiece. Its unique performance of capable for testing thickness through the coating provides efficient solution for testing the workpiece of coated surface or corrosion materials. It can test the workpiece directly without needing to get rid of the surface coating. It’s widely used for monitoring the production equipments’ various pipelines and pressure vessel corrosion reducing degree in the fields of petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and so on. It also can be used for making accurate measurement to various plates and machining parts. It is the necessary professional precision instrument for improving the production efficiency and qualification rate as well as saving cost.

Technical Parameters:

Technical SpecificationsTechnical Parameters
Measuring RangeSupport two modes for thickness measurement
Pulse-Echo mode: (0.65~600)mm
Echo-Echo mode: (3~60)mm
Accuracy±0.05mm(≤10mm);±(0.5%H+0.01)mm(>10mm); H refer to the thickness of workpiece
Measurement Frequency7 times per second for single point measurement, 16 times per second for scan mode measurement.
DisplayHigh contrast Segment LCD display (support for EL backlight display)
Resolution0.1mm/0.01mm selectable
Sound Velocity Range(1000~9999)m/s (Capable for measuring the sound velocity of the object with known thickness)
Probe CalibrationZero-point calibration, two-point calibration
Thickness Measurement ModeSingle Point measurement, min/max measurement, differential measurement
Data StorageCapable for saving and managing 20 groups of thickness data (up to 100 values for each group)
UnitsMetric/Imperial unit selectable
CommunicationUSB 1.1 interface for connecting with PC for printing
Power SourceWith two “AA” size alkaline batteries, it can work above 50 hours continuously with default brightness.
Auto Power SavingAuto shutdown power saving function
MaterialABS engineering plastic
Size150mm×74mm×32mm
Weight245g

Features:

  • Capable of performing thickness measurements on a wide range of material including metals (such steel, cast iron, aluminum, copper and so on), plastic, ceramics, composites, epoxies, glass and other ultrasonic well-conductive materials.
  • With two thickness measurement modes: Pulse- Echo mode and Echo-Echo model, it can measure the thickness through the coating without calculating the coating thickness.
  • With large storage capacity and lower power design, it can standby super long time above months.
  • Capable for measuring the sound velocity of the object with known thickness, it can meet the thickness testing requirements for various materials.

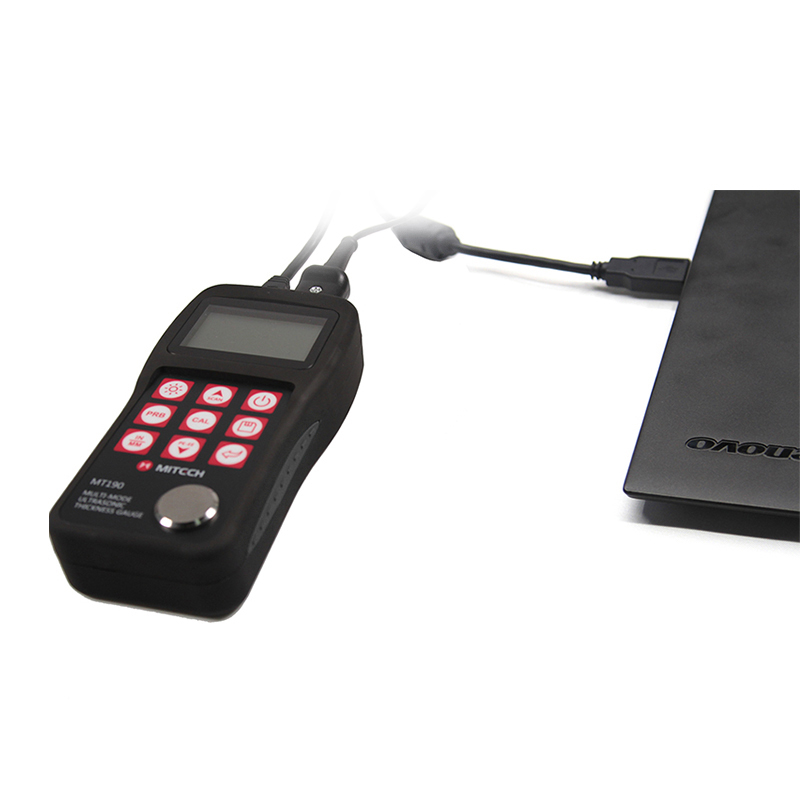

  • Attach with USB data proceeding software, it can connect with PC for data’s analysis, storage and printing.
  • Capable for compatible with a variety of probes with different frequency and size, it can identify the probe type automatically.
  • With probe-zero calibration and two point calibration functions, it can correct the system error automatically
  • Equipped with narrow impulse composite crystal high accuracy probe, it has small dead zone and accurate measurement.
  • With EL backlight display, it is convenient for using in dim light environment.
  • With auto sleep, auto shutdown and other power saving functions as well as battery rest capacity indicating function. Smart portable design with high reliability, it can anti vibration, shock and electromagnetic interference, suitable for harsh operating environment.

Working Principle:

The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the down-and-back travel path, and then multiplied by the velocity of sound in the material. The result is expressed in the well-known relationship: H=v×t/2

Where: H-Thickness of the test piece.

               v-Sound Velocity in the material.

               t-The measured round-trip transit time.

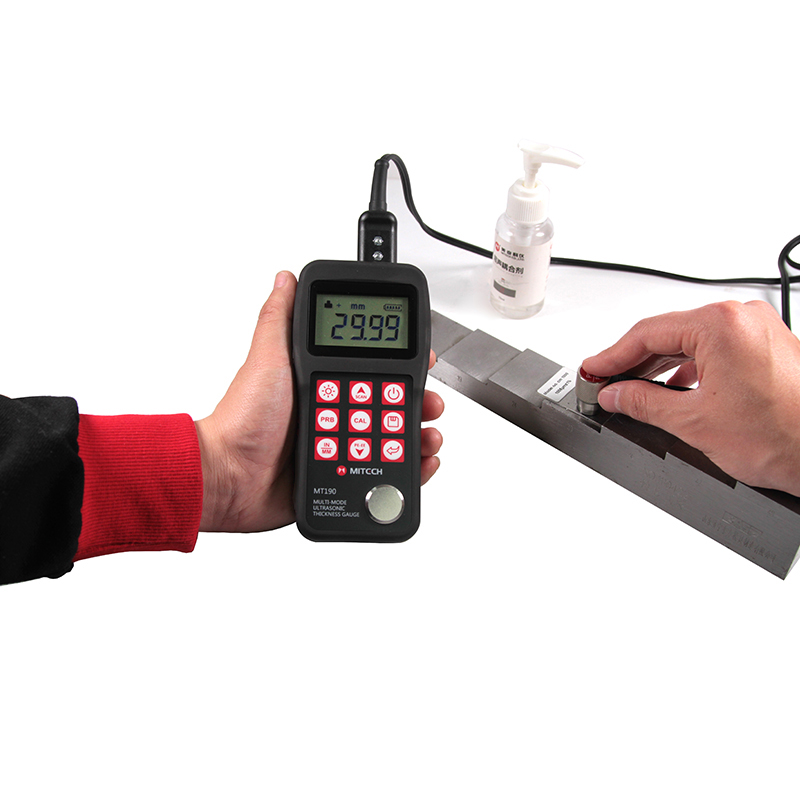

To make sure the probe working properly, it needs to use couplant to isolate the air between the probe surface and the measured workpiece surface. The liquid used for the coupling between the probe and workpiece is called as couplant.

Transducer Selection:

ModelFreqDiamMeasuring RangeLower limitDescription
N055MHz10mm1.0mm~600mm (in steel)Φ20mm×3.0mmNormal measurement
N05/90°5MHz10mm1.0mm~600mm (in steel)Φ20mm×3.0mmNormal measurement
N077MHz6mm1.0mm~600mm (in steel)Φ15mm×2.0mmFor thin pipe wall or small curvature pipe wall measurement
HT55MHz12mm1.0mm~600mm (in steel)30mmFor high temperature (lower than 300℃) measurement
N022.5MHz14mm1.0mm~600mm (in steel)20mmFor thick, highly attenuating, or highly scattering materials
P5EE5MHz10mmPulse-Echo:2.0mm-600mm (in steel)
Echo-Echo: 3.0mm-100mm (in steel)
Φ20mm×3.0mmTrough-coating thickness testing

Configuration:

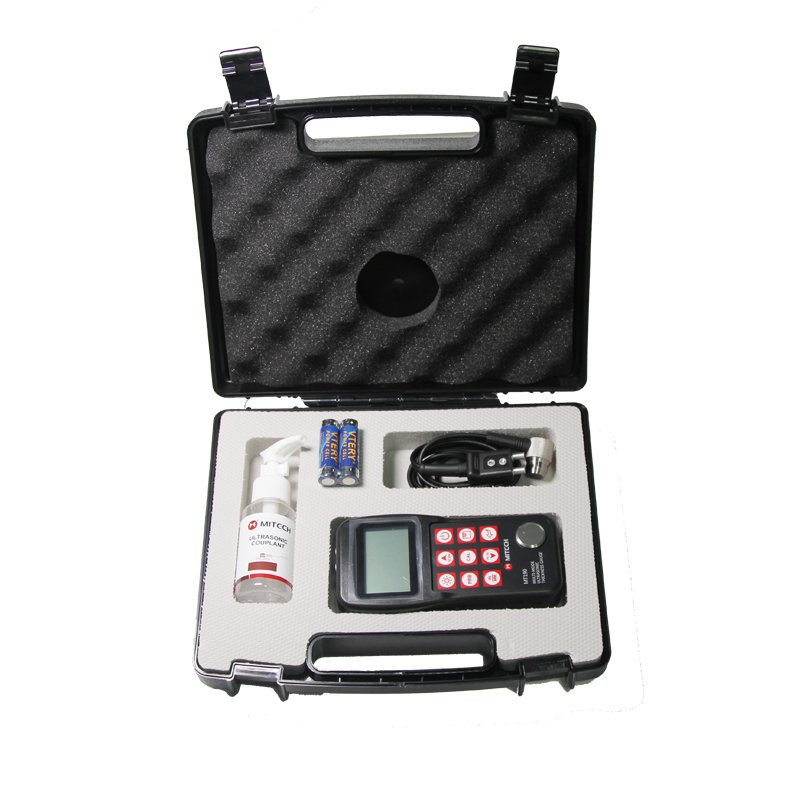

Standard Configuration

No.TypeQTYRemarks
1Main Unit1
2Narrow Impulse Thickness Probe (P5EE)1
3Couplant1
4ABS Instrument Case1
5Manual1
6Warranty Card1
7Product Certificate1
8“AA” size alkaline batteries2

Optional Configuration

No.TypeQTYRemarks
1Normal Probe N05/90°(5MHz)
2Normal Probe N05 (5MHz)
3High Temperature Probe HT5(5MHz)
4Coarse Grain Probe N02 (2.5MHz)
5Micro Diameter Probe N07 (7MHz)
6High Temperature Couplant
7USB Communication Cable
8Data Proceeding Software
