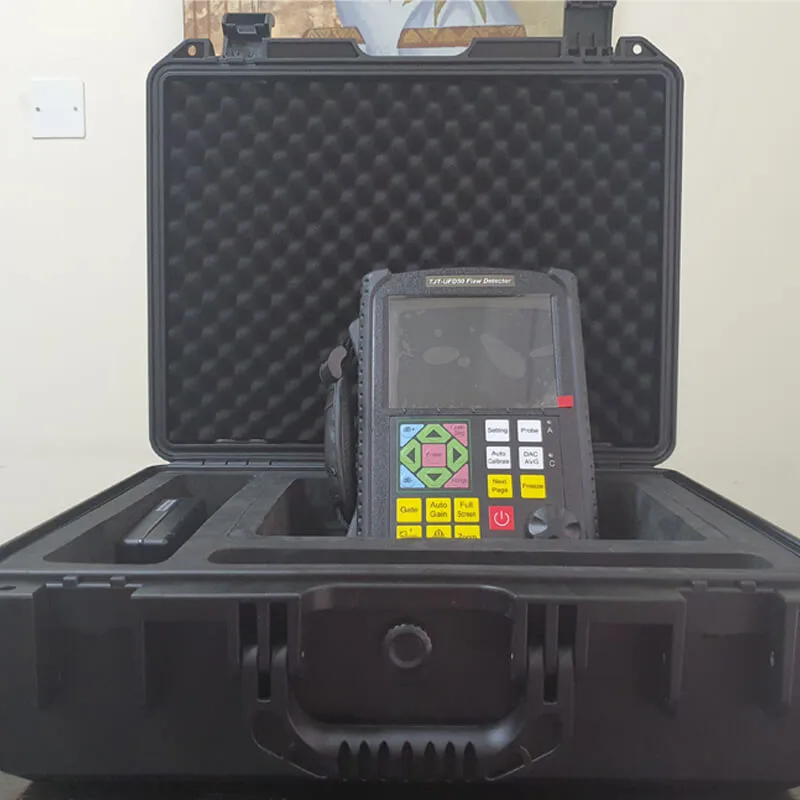

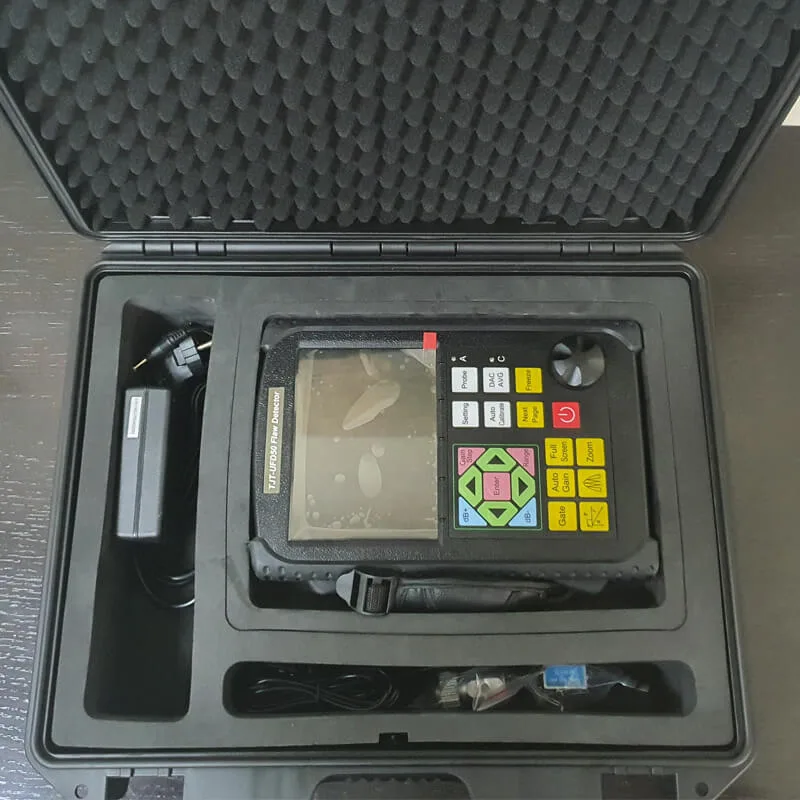

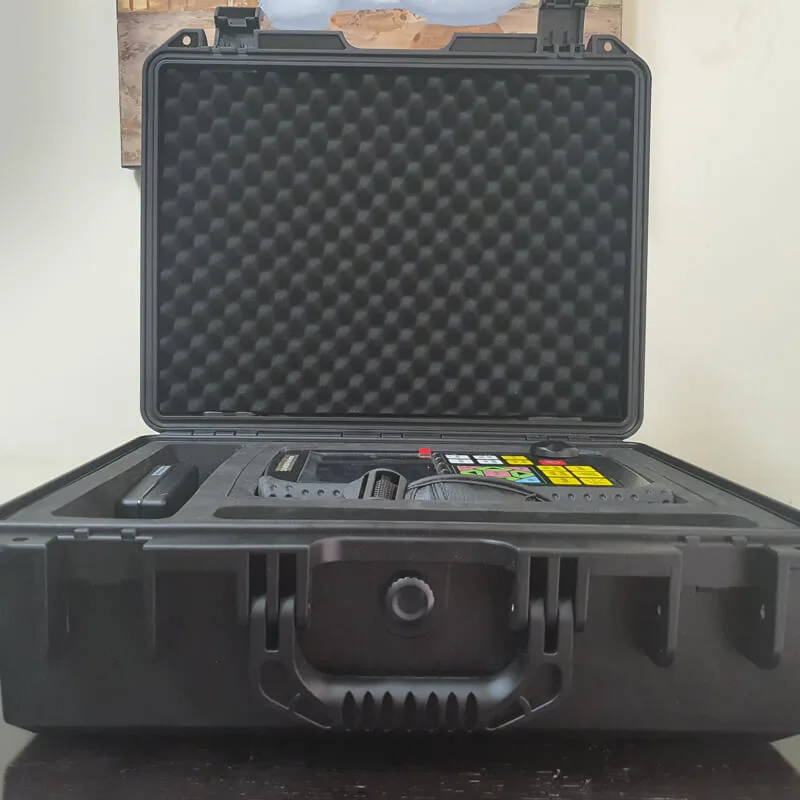

Ultrasonic Flaw Detector UFD50

Overview:

The Ultrasonic Flaw Detector UFD50 is a lightweight, ergonomically ultrasonic flaw detector, which particularly is suitable for assessing and locating material defects and flaws.

Key Features:

• Automated gain and gain scan



• Peak Hold and Peak Memory



• DAC, AVG, B scan, AWS



• TCG curve



• High-speed capture and very low noise



•


  Automated make video of test process and play. Use USB flash disk, the length of video is unlimited.



•


  High contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles



•


  Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, Ø)



•


  Automated switch three staff gauge (Depth d, level p, distance s)



•


  Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity



•


  Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated



• 6dB DAC functions



•


  100 independence setup, any criterion can be input freely, we can work in the scene without test block



• Big memory of 1000 A graph



•


  Big memory of 300 A graph and 30000 thickness values



•


  Li battery, continue working time up to 10 hours



• The embedded software can be online updated



• Display freeze



• Automated echo degree



• Angles and K-value



• Lock and unlock function of system parameters



• Electronic clock calendar



• Two gates setting and alarm indication



• Gate and DAC alarm



•


  Automated measurement of nodularity and vermicularity



•


  RS232/USB port, Communication with PC is easy



•


  Powerful pc software and reports can be export to excel



• Pulse parameteres can be adjusted



• Dormancy and screen savers



• Solid metal housing (IP65)

Specifications:

[table id=13 /]
